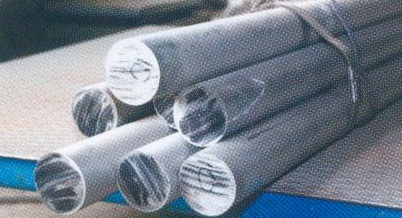

15Х16Н2АМ - эп479 sheet, round, wire

15Х16Н2АМ - эп479 sheet, round, wire

General characteristics

Brand 15Х16Н2АМ-sh (ЭИ479-sh) is a high-alloy heat-resistant steel. It is composed of chromium (16%) and Nickel (2%), therefore, this steel belongs to the group chromium-Nickel alloys. In addition, as additives to the charge applicable silicon, manganese, copper, phosphorus and sulfur. At the beginning of the process of raskopki steel temperature is 1170 °C, and in the end — about 850 °C.

The chemical composition of the alloy
Mark C Si Mn Mo Cr Cu N Ni S P Fe
15Х16Н2АМ 0,14 0,16 0,5 to 0.6 to 0.3 15−17 0,2 0,4 1.9 to 2.2 0,025 0,03 the rest

Production

Pipe brand 15Х16Н2АМ-sh diameter up to 350 mm cooled in air. Manufactured with a circular cross section, but there is also the possibility of renting them from the oval, rectangular and square section. They are classified by diameter and wall thickness. Pipe Ø 5−250 mm and the walls are 0.3−6 mm are called extremely thin-walled. Thin-walled pipe has a wall thickness of 0,6−20 mm with the same diameter. From thick-walled pipes with a diameter of 6−250 mm, and the wall of 1,6−24 mm. Very thick-walled pipes are produced in Ø 6−70 mm and 2−12 mm. wall Fastening elements and components of structures made using manual arc welding electrodes KTI-762.

Application

Production of different parts of furnace conveyors, heating furnaces, boxes for carburizing. These pipes can be used at high pressure in the system, they are often used in the chemical and nuclear industries, nuclear reactors, boilers and furnaces. This pipe can be produced bearings, parts separators and other parts of the rolling pressure.

Buy at best price

The company «AVEK global» specializiruetsya the sale of heat-resistant and stainless steel alloys. We offer metal stamps 15Х16Н2АМ-sh from warehouses in Russia and Ukraine with delivery to any region. All products available in stock, certified. The timing of orders is minimal. If necessary, you will receive detailed advice from experienced managers. For wholesale orders the company provides a substantial discount.
